USB Amplifier

A lot of audio equipment has a digital input (optical or coax), very few computers have a digital out. Apple and of course Toshiba are the ones I know having a headphone out doubling as a (mini) Toslink out.
Every PC has USB but very few audio equipment has a USB input.
Except of course for the USB speakers but these are targeted at the desktop.
Slowly but surely DACs appear on the market with a USB input.



Amplifiers supporting it all, USB, SPDIF and the normal analogue inputs are rare.

A list of amp's with digital inputs can be found here: HTForum



Audio4Soul Xtreme16 USB €1350

Integrated amplifier with 24/192 asynchronous USB input and SD card.

Amplification by PWM (Pulse Width Modulation)

Inputs: 2xS/PDIF (coaxial, optical 24bit/96kHz), 1xUSB (24bit/192kHz, XMOS, driver for Win)
Memory card SD, FAT32, compatible with WAV files (16bit/48kHz), MP3/Ogg (128-320kbps)
Power 2x16W
Thd+N 0.01%
Other Remote control, 8GB SD card, USB to SD adapter.
Dimensions 360x145x275 (mm, LxHxD)
Weight 6kg



April music Stello Ai500 Integrated Amplifier $3495 USD



Output Power 150 Watts/CH @ 8 Ohms, 300 Watts/CH @ 4 Ohms
Output Stage Quad Para Push-Pull Hitachi MOSFET Power Transistors, Class AB
Power Supply Custom Made 800 VA Toroidal Transformer 90,000 uF Capacitor Bank
Frequency response 20~45 kHz
THD + N < 0.05 %
Volume control Cirrus logic CS3310 digital volume control
Analog inputs 3 unbalanced analog line inputs
1 balanced analog line input
1 BYPASS input
2 Analog Outputs Pre-out, REC
4 Digital inputs

COAX, OPTIC, PC USB Link, iPod

COAX : up to 192 kHz / 24 bit
PC USB, OPTIC : up to 96 kHz / 24 bit

Front Panel POWER, BALANCED, CD, TUNER, AUX, DIGITAL, BYPASS, MUTE, Rotary
Volume Encoder
Full Function Remote Control
Dimension 460 (W) X 86 (H) X 400 (D) mm
Weight 16 Kg (Net.)



Audio Space

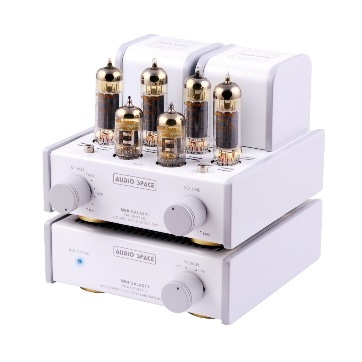

Mini Galaxy One Stereo Integrated Amplifier ($899,-)
Output Power : 2 x 13W (Ultralinear-Class AB Push-Pull)
S/N Ratio : >88 dB
Output Impedance : 4, 8 ohm
Input Mode : RCA / USB (For PC, I Pod)
Vacuum Tubes : EL84 x 4, 12AX7 x 2

USB specs not available on the website so probably limited to 16 bits/48 kHz.

Bel Canto Design e.One S300iu

Integrated amplifier with 300 Watts of dual mono balanced power capability per channel.

USB specs not available on the website so probably limited to 16 bits/48 kHz.

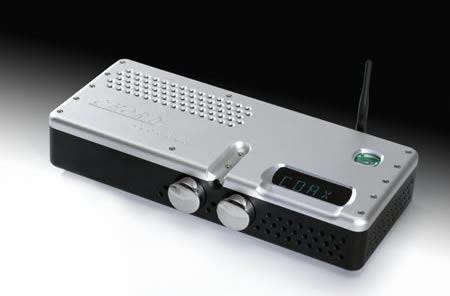

Chord CYAN Click Digital Integrated Amplifier

Unbalanced Input: 1 pair RCA phono

Balanced Inputs: 1 pair of 3-pin female XLR inputs

Digital Inputs: Coax BNC, TOSLink Optical, B type USB

Wireless Input: Bluetooth A2DP

Signal to Noise Ratio: -90dB all inputs

Frequency Range: 2.5Hz – 200kHz (-3dB)

USB specs not available on the website so probably limited to 16 bits/48 kHz.



Price: $8500 High Power Version (100W rms)

Classe CP-800 US$ 6000.00 CP-800

One of the inputs: asynchronous USB.

Full support of Apple’s iPod®, iPhone® and iPad® range of products.

According to the press release:



"the CP-800 can surpass the performance of conventional disc playback systems," said Dave Nauber, EVP of brand development. "A storage device like an iPod or computer can contain all the data of the original recording, so it has the potential to be an audiophile source," he said. "The challenge is to clock that data into the D/A converters at precisely the right time, which the CP-800 achieves through newly-developed recovery and clocking technology."



Available late 2010

Electrocompaniet PI 2D Integrated Amplifier €3.150

2 x 100 Watts integrated amplifier.

Digital inputs: two Coax, two TOSLink and one 24/192 asynchronous USB

Analog input: 1 balanced XLR input and four single ended RCA inputs.



Technical specifications:
• Input impedance ( Single Ended ): 60 kOhm
• THD + N: < 0.005%
• Output Impedance: < 0,03 Ohm
• Frequency response: 1 – 225kHz
• Channel separation: > 120 dB
• Noise floor ( 1Vrms, 20 - 20 kHz, balanced): <-130 dB
• Damping factor: >300
•Rated output power
8 ohms 2 x 100 W
4 ohms 2 x 165 W
2 ohms 2 x 220 W

Dared MP-5 €330

13 W integrated amplifier.

USB specs not available on the website so probably limited to 16 bits/48 kHz.

Luxman DA-200 USB DA Converter $2,199.00 USD

Pre-amp / headphone amp with analoque and digital inputs.

Single ended and balanced out + digital out.

COAX/OPT input: 32kHz, 44.1kHz, 48kHz, 88.2kHz and 96kHz, 176.4kHz and 192kHz
USB input: 32kHz, 44.1kHz, 48kHz and 96kHz
16 - 24bit 2ch PCM



Outlaw Audio  RR2150 Stereo Receiver US$ 699



100 W stereo receiver with USB.

USB specs not available on the website so probably limited to 16 bits/48 kHz.

Peachtree Audio Decco65 US$ 999



Amplifier
Class D amp modules 65 watts per channel <0.5%
distortion into 8Ω, 95 watts per channel <0.5%
distortion 4Ω, 20Hz-50kHz +/- 0.1dB

Preamplifier
Hybrid tube design (triode 6N1P) 5V output @ 2.0V input
Max output: 7V rms / 11.2V peak
Class A output stage <50Ω

Headphone Amplifer
Class A output with 6N1P tube in the circuit
Maximum output power: 100mW into 8 Ohm / 300mW into 150 Ohm / 150mW into 300 Ohm
Output impedance: <30Ω
Suitable for all electrodynamic headphones

DAC
ESS Sabre 9023 Upsampling 24/192
Sampling Rates : 44.1, 48, 88.2, 96, 176, 192
USB Asynchronous up to 24/192
Optical Up to 24/192
Coax Up to 24/192
<3ps jitter measured at master clock






Primare I22

2x 80 watt integrated amplifier with adaptive mode USB (24 bit / 96 kHz)

Rotel RA-1570 € 1599

Asynchronous USB 24 bit / 192 kHz

Wolfson WM8740

2x 120 wattAB into 8 Ohm

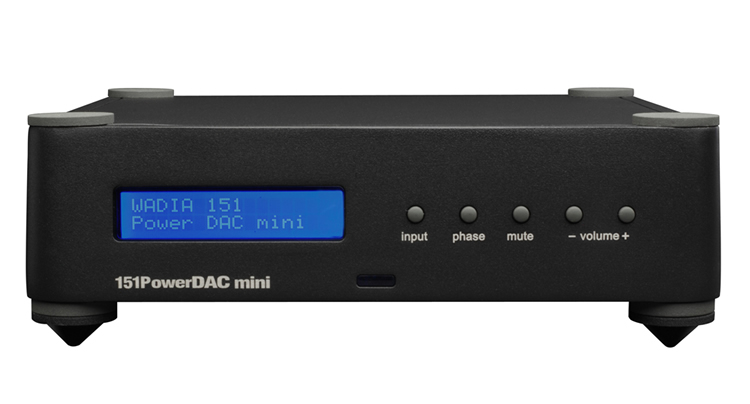

Wadia 151 PowerDAC US$ 1,195.00

Inputs: 2 Coaxial S/PDIF (RCA), 1 TOSLINK optical, 1 USB. All inputs, excluding the USB (24-bit/96kHz), can accept up to a 24-bit/192kHz

Power: 50 watt/channel 4 Ohm, 25 watt/channel 8 Ohm

Dynamic Power Rating @ 1kHz:200Watt/channel 4 Ohm

Distortion (THS + N):1kHz at 1Watt: 0.03%, 1kHz at 45W: 0.11%

Signal-to-Noise Ratio:-103dB (signal on), -105dB (signal off)

Frequency Response:20Hz to 20kHz ±0.7dB

Wyred 4 Sound mINT US$ 1,499.00

Mini-Integrated amplifier
DAC: ESS


Inputs:
2 analog
S/PDIF 24 bit 192kHz
Asynchronous USB 24 bit 96kHz

Outputs:
Pre-amp out
Headphone out
ICEpower amp 100 wpc in 8 Ohm
